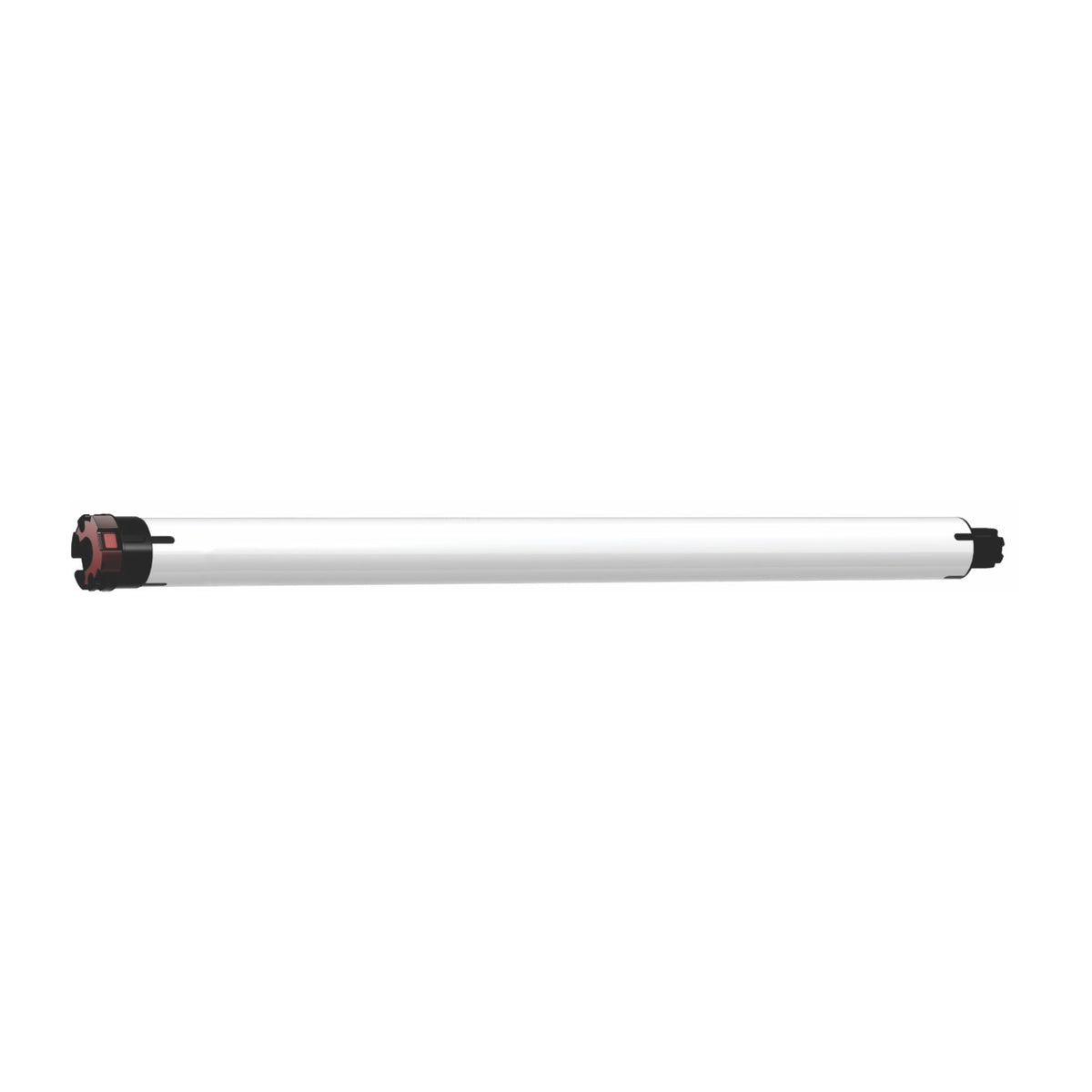

Alpha WSEC40 5/28 Universal 4-Core Motor – Electronic Limits, 5Nm - Pre-Order Item
Alpha WSEC40 5/28 Universal 4-Core Motor – Electronic Limits, 5Nm - Pre-Order Item
Couldn't load pickup availability
Alpha 35mm 4-core motor with electronic limits and a parallel connection – Alpha's pick where automation systems need electrically controlled 4-core motors.
Key features
- Electronic Limit Switch
- Parallel connector motor 35mm diameter
- For use with building management systems
- Parallel wiring compatible
Specifications
| Model / Part No. | WSEC40528 |
| Rated Torque (Nm) | 5 |
| Output Speed (rpm) | 28 |
| Nominal Consumption (W) | 116 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.49 |
| Running Time (min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 560 |
| Maximum Turns | Unlimited |
| Net Weight (kg) | 1.35 |
| Included C&D | A2310 |
| Included Motor Bracket | A3304 |
Good to know
- Limits can be set with the WSB01 limit-setting tool or the button on the motor head.
- This is a pre-order item, supplied by Alpha. We supply parts only; installation is not included.
Please note this is a pre-order item. It will take approximately 5-7 business days to be shipped.
