Alpha

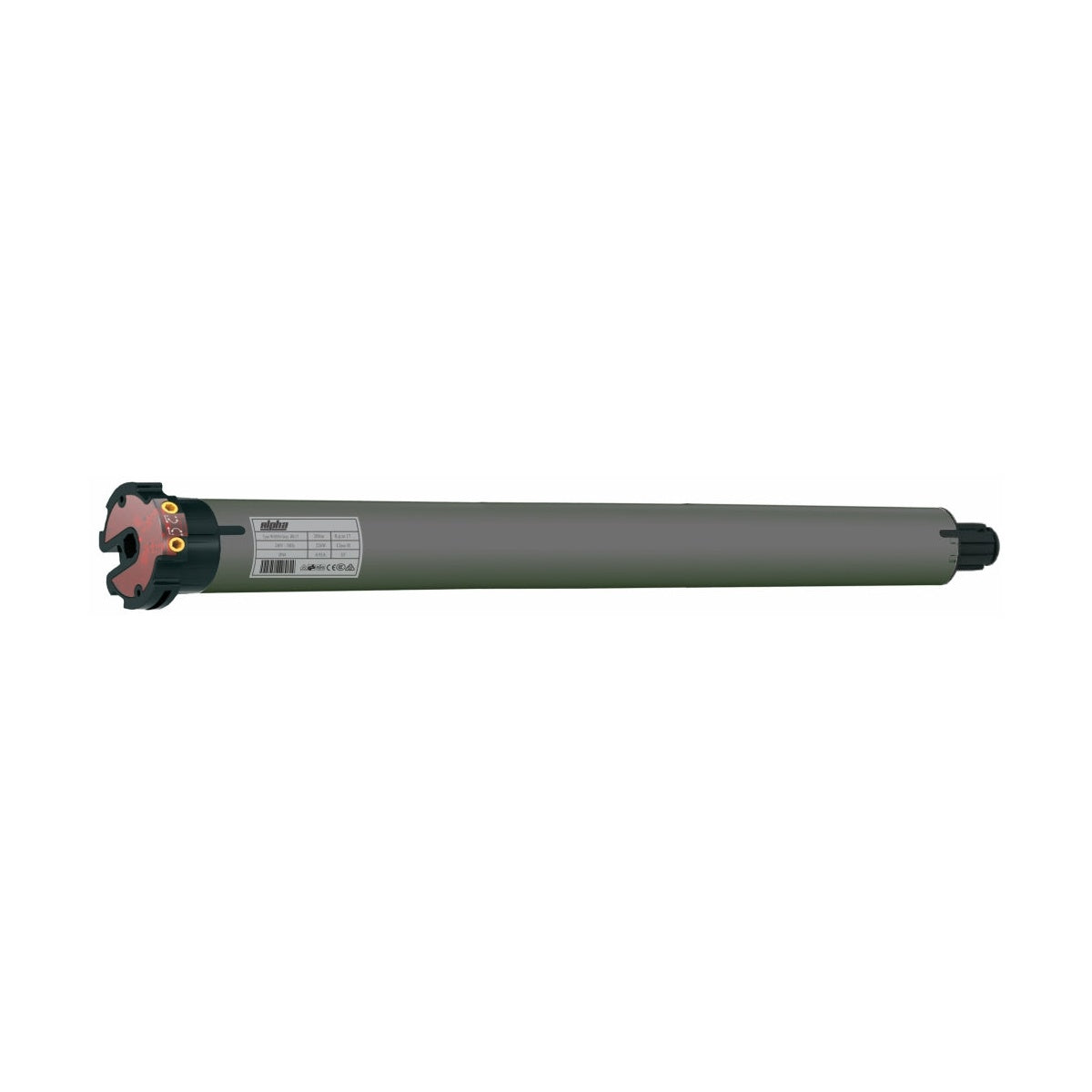

Alpha WSS50 20/17 Grey Mechanical Limit Motor with Molex – 20Nm - Pre-Order Item
Alpha WSS50 20/17 Grey Mechanical Limit Motor with Molex – 20Nm - Pre-Order Item
Couldn't load pickup availability
Alpha Grey 20Nm mechanical-limit motor with molex connector – Alpha's economy range aimed at roller shutters. Alpha describes it as less over-engineered than its premium motors but fully meeting its specifications.
Key features
- Standard type motor
- Mechanical switch
- Available both with or without Molex connectors
Specifications
| Model / Part No. | WSS50 20/17 |
| Rated Torque (Nm) | 20 |
| Output Speed (rpm) | 17 |
| Nominal Consumption (W) | 155 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.68 |
| Running Time (min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 445 |
| Maximum Turns | 27 |
| Net Weight (kg) | 2.40 |
| Included C&D | A2404 |
| Included Motor Bracket | A3415 |
Good to know
- Alpha states the Grey range carries a 5-year warranty (industry standard).
- This is a pre-order item, supplied by Alpha. We supply parts only; installation is not included.
Please note this is a pre-order item. It will take approximately 5-7 business days to be shipped.
