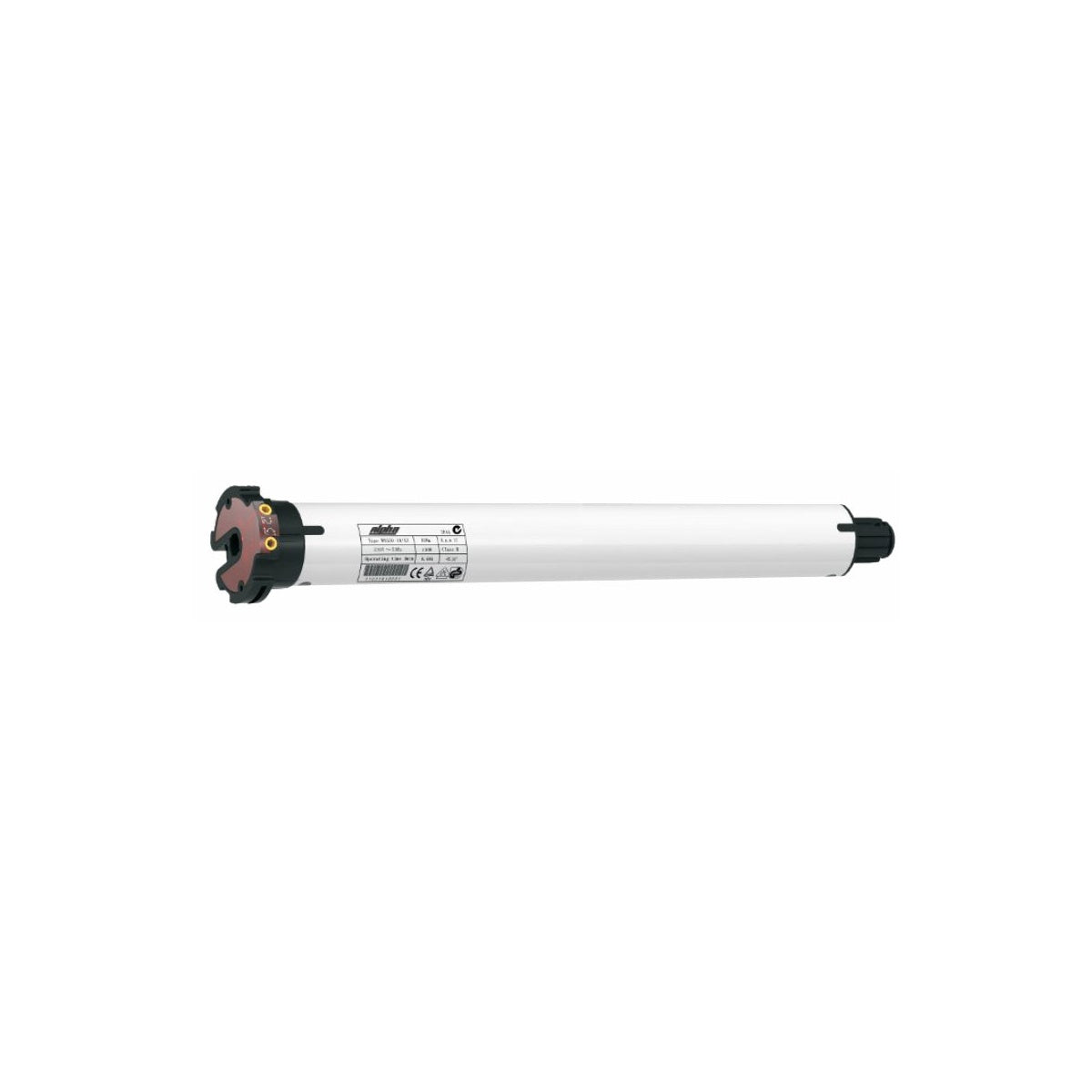

Alpha WSS50S 10/17 Short Mechanical Limit Motor – 10Nm, 380mm - Pre-Order Item
Alpha WSS50S 10/17 Short Mechanical Limit Motor – 10Nm, 380mm - Pre-Order Item
Couldn't load pickup availability
Alpha 10Nm short mechanical-limit motor. A standard mechanical-limit motor in a short 380mm body, so it fits places the longer WSS50 won't – for example roller shutters on narrow bay windows. Its smaller head needs a different mounting bracket, which Alpha supplies with the motor. Because of the short body, it allows up to 12 turns between limits (Alpha quotes roughly a 4m drop for a roller shutter).
Key features
- Standard type motor 45mm diameter
- Mechanical switch
Specifications
| Model / Part No. | WSS50S10/17 |
| Alpha description | Short Motor - Mech limits (only 380mm long) (10 Nm) |
| Rated Torque (Nm) | 10 |
| Output Speed (rpm) | 17 |
| Nominal Consumption (W) | 155 |
| Nominal Voltage (V) | 240 |
| Nominal Current (A) | 0.68 |
| Running Time (min) | 4 |
| Protection Index (IP) | 44 |
| Total Length (mm) | 380 |
| Maximum Turns | 12 |
| Net Weight (kg) | 1.86 |
| Included C&D | A2404 |
| Included Motor Bracket | A3045 |
Good to know
- This is a pre-order item, supplied by Alpha. We supply parts only; installation is not included.
Please note this is a pre-order item. It will take approximately 5-7 business days to be shipped.
