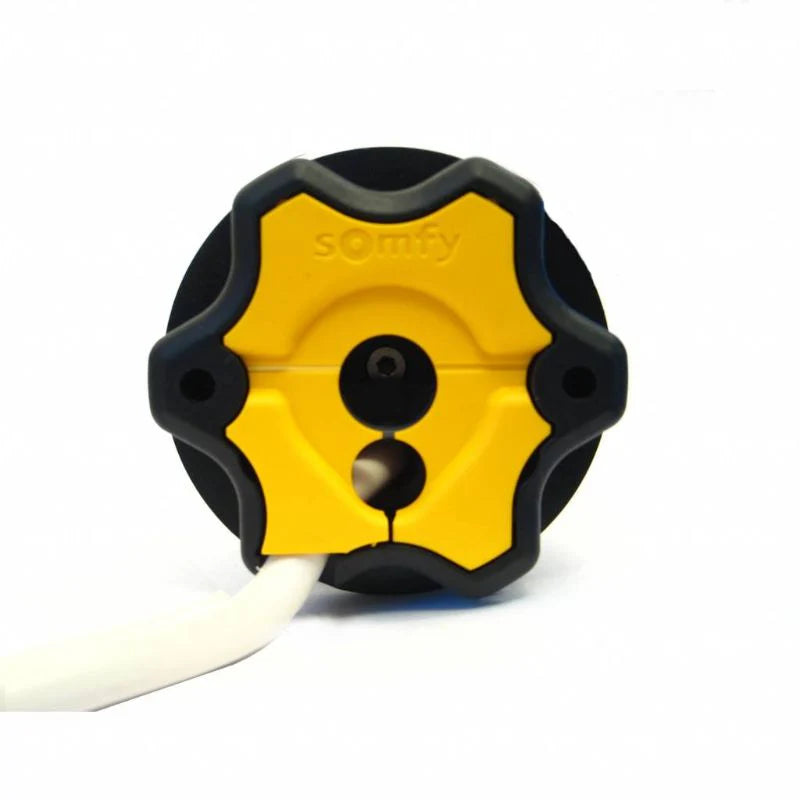

Somfy Motor - Altus 50 RTS 15/17 3M -White Cable | Pre-Order | 1039378

Information:

1. 230V / 50Hz tubular motor.
2. The Altus 50 RTS is suitable for a wide range of roller
   blind application types.
3. Available in torques from 6Nm to 15Nm, coupled with its
   flexible 48mm design, it is adapted for Ø50mm tubes and
   above. Available in the traditional star head style or as a
   round head (RH) to allow for extra fabric drifting, a
   built-in radio receiver with Somfy’s rolling code and the
   installation flexibility of remote control make the Altus 50
   RTS a suitable all round performer.
4. Remote set limits.
5. Turning capacity limited only by thermal time.
6. Suitable for tubes: Ø50 to Ø65.
7. Memory Capacity: 12 channels / transmitters, plus 3
   sensors.
8. Programmable “my” position.
9. Requires the use of a crown and wheel for tube adaptation.
10. Horizontal mount only.
11. Intermittent Usage.

Technical Data:

1. L1 (mm): 655
2. L2 riveting distance (mm): 640
3. Torque (Nm): 15
4. Speed (rpm): 17
5. Rated Voltage (V): 230
6. Rated Power consumption (W): 140
7. Rated Current (A): 0.65
8. Running time before thermal cut off (min): 4
9. Thermal cut off temp (°C): 150
10. Average running noise (dbA): 50
11. Minimum tube diameter: 50 x 1.5
12. Motor weight (kg): 2.12
13. Cable length (M): 3
14. Number of cores in cable: 3
15. Cross section of cable (mm²): 0.75
16. Index Protection: 44
