Somfy Orea RTS Motor for Cassette Awnings | Pre-Order
Somfy Orea RTS Motor for Cassette Awnings | Pre-Order
Couldn't load pickup availability

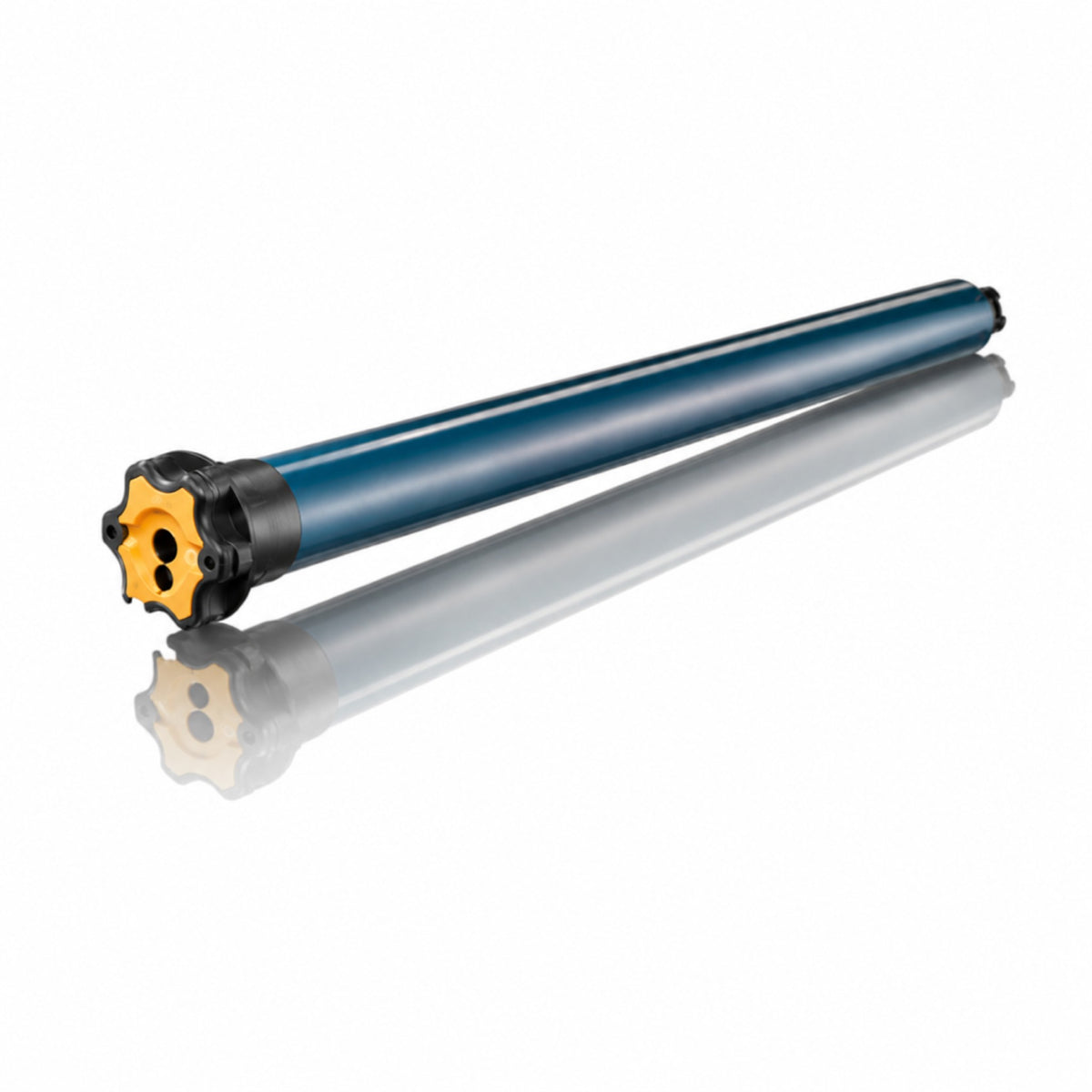

The Somfy Orea RTS is a radio-controlled electronic motor for cassette awnings. It comes in Orea 50 and Orea 60 versions across a range of torques, all with a 3 m white cable.
One RTS remote can drive any RTS device around the terrace or house, and the motor can send the awning to a saved “my” favourite position in one press.
Key features
- Soft Close electronic stop detection: the motor stops as soon as the cassette is closed, limiting stress on the fabric
- Back release relaxes the fabric just after closure, and an adjustable back impulse after each down movement keeps the fabric taut
- Obstacle detection (crown stop) stops the motor instantly if something is in the way
- Automatic fabric length compensation keeps the projection constant over the years
- Suits awnings and external screens using RTS technology
Models
| Somfy ref | Model | Torque / speed | Cable |
| 1111095 | OREA 50 | 10 Nm / 17 rpm | 3 m white |
| 1112164 | OREA 50 | 15 Nm / 17 rpm | 3 m white |
| 1114130 | OREA 50 | 25 Nm / 17 rpm | 3 m white |
| 1116125 | OREA 50 | 35 Nm / 17 rpm | 3 m white |
| 1118090 | OREA 50 | 50 Nm / 12 rpm | 3 m white |
| 1181068 | OREA 60 | 55 Nm / 17 rpm | 3 m white |
| 1183057 | OREA 60 | 85 Nm / 17 rpm | 3 m white |
| 1184058 | OREA 60 | 100 Nm / 12 rpm | 3 m white |
| 1184063 | OREA 60 | 120 Nm / 12 rpm | 3 m white |
Specifications
| Radio technology | RTS |
| Radio frequency | 433.42 MHz |
| Nominal voltage / frequency | 230 V / 50 Hz |
| Cable type | PVC, 3 m white |
| Thermal time | 4 min |
| Protection index | IP44 |
| Insulation class | Class I |
| Limit switch type | Electronic |
| Approval | RCM |
